Features
Ceramic Grain
- Triangular shaped ceramic grains with high grinding force.
- Maintain high stock removal with minute self-crushability peculiar to ceramic grain.
Depressed Center
- Flange is not in the way from grinding because of Depressed Center.
*Actual size picture of the ground surface after grinding SS400
Combined pad
- Adjusting grinding pressure by NRS original pad with “power blade” prevents grain dulling and maintains high grinding force.
- Cushioned pad helps disc contacting with workpiece softly and less vibration.
- Grinding disc, pad and flange are integrated (One-touch Type), prevent disc run-out and deformation.

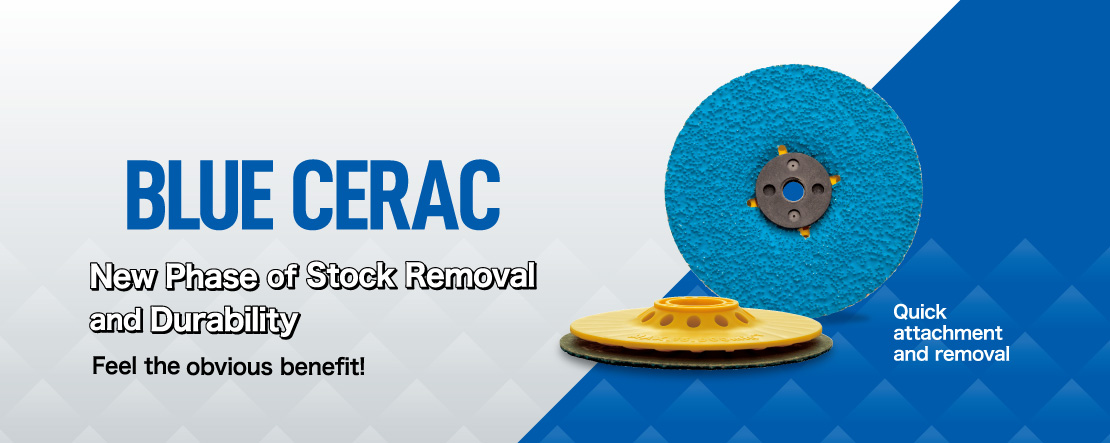

New Phase of Stock Removal and Durability
*Our experimental data.
Stock removal index when SS400 is grinded until 100φ wheels are used up.
(The performance of competitor’s depressed center wheel is defined as 100.)
*Our experimental data.
Grinding force index when SS400 is grinded until 100φ wheels are used up.
(The performance of competitor’s depressed center wheel is defined as 100.)
Example of use
Material:Steel
Operation:Remove bead
Material:Steel,Stainless
Operation:Beveling
Material:Steel
Operation:Remove bead
Applications
- Surface grinding such as general steel, stainless steel or alumimnum,Deburring, Chamfering,Descaling,Light grinding, Mill scale or paint removal .etc
Specifications
| Diameter (mm) |
screw size |
Grit | Packing Outer Box （pcs × inner box） |
Max rpm | |
|---|---|---|---|---|---|
| 100 | M10 | 36 | 50pcs (10pcs × 5) |
15,000rpm | |
- The unit of diameter, thickness and bore is the mm.
- Each product lines are available in different sizes, please contact us.
Article
Working surfacePackage
Precautions
- The pad and disc are integrated, do not disassemble and use.
- Use at an angle of 15 degrees or less.
- Prevent side of disc from contact with corner or protrusions of weld bead.
- When grinding workpiece that has irregular surface, hold a wheel down from directly above and move it towards operator.
