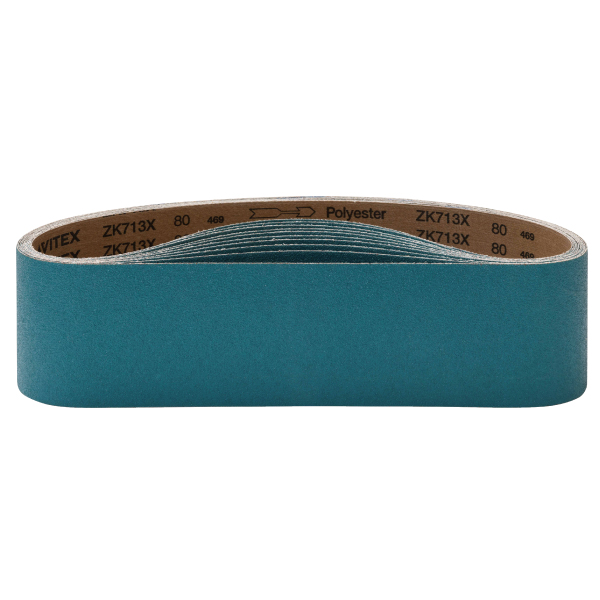

Z Belt Blue

Features

Sharp zirconia grains

• Suitable for heavy grinding, light grinding, and polishing
• Consistent performance during use

Fine-grit grains ensure a smooth and stable surface

Z Belt Blue #80

Excellent cost performance

• Delivers high performance even under light loads

Sturdy joints

• Straight cuts bonded with film from the back side. Safe joints even under high loads.

Example of use

Applications

• For light grinding and polishing tasks, including bead removal, deburring, and rust removal on various materials such as steel, stainless steel, and aluminum.

Grain		zirconia
material	Steel	●
	Stainless steel	●
	Cast iron	○
	Nickel	○
	Copper/Copper alloy	○
	Zinc	○
	Wood	○

※ ● indicates optimal for that material, while ○ indicates suitable.

Specifications

Width	Circumference	Grit	Part number	Packing Outer Box （pcs × inner box）
10	330	36	ZBAO10330-36	100pcs（10pcsx10boxes）
		60	ZBAO10330-60	200pcs（20pcsx10boxes）
		80	ZBAO10330-80
		100	ZBAO10330-100
		120	ZBAO10330-120
12	330	36	ZBAO12330-36	100pcs（10pcsx10boxes）
		60	ZBAO12330-60	200pcs（20pcsx10boxes）
		80	ZBAO12330-80
		100	ZBAO12330-100
		120	ZBAO12330-120
20	520	36	ZBAO20520-36	50pcs（5pcsx10boxes）
		60	ZBAO20520-60	100pcs（10pcsx10boxes）
		80	ZBAO20520-80
		100	ZBAO20520-100
		120	ZBAO20520-120
100	915	36	ZBAO100915-36	50pcs（10pcsx5boxes）
		60	ZBAO100915-60
		80	ZBAO100915-80
		100	ZBAO100915-100
		120	ZBAO100915-120

• All width and circumference measurements are in mm.
• Please check as availability in the lineup may vary by size.

Article

Package

In preparation

Precautions

1.Grinding dust and heat may cause injury or fire, and there is a risk of scattering abrasive grains, grinding chip, or abrasive breakage.
   Use appropriate safety gear such as protective glasses, safety helmets, dust masks, gloves, and long-sleeve shirts during grinding.
2.Do not press the workpiece against the belt with excessive force or press sharp objects against it.
3.Handle the belt with care. Avoid applying any stress, such as twisting or bending, especially at the joints.
4.Check for any visible defects or abnormalities before use.
5.Ensure proper ventilation during operation.
6.Do not store in direct sunlight or in areas with extreme dryness or humidity.
7.Read the instruction manual for the compatible grinder or sander carefully before use. Do not use with grinders or sanders other than the compatible one.
8.When replacing the belt, ensure that the switch is turned off and the grinder or sander is completely stopped before disconnecting the grinder or sander from the hose or power supply.
9.Ensure the safety of nearby workers. Do not perform work near flammable materials, such as gasoline.
