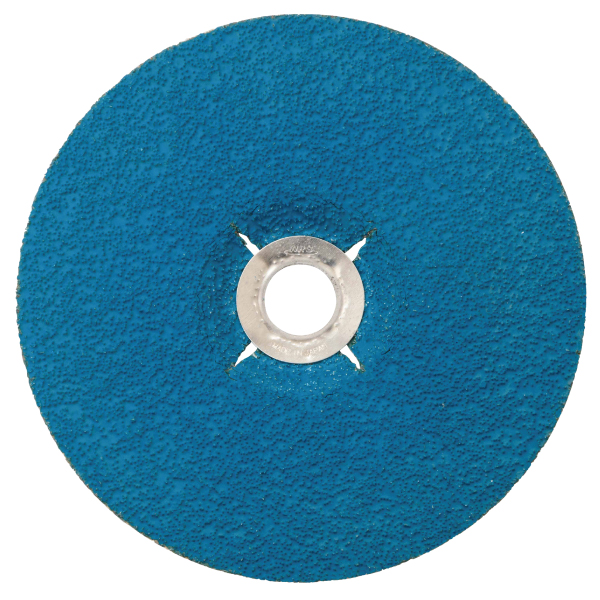

Features

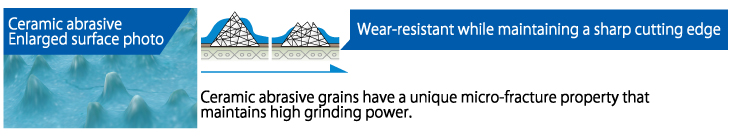

Ceramic Grain
- Triangular shaped ceramic grains with high grinding force.
- Maintain high stock removal with minute self-crushability peculiar to ceramic grain.

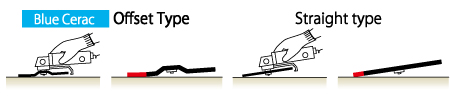

Depressed Center
- Flange is not in the way from grinding because of Depressed Center.

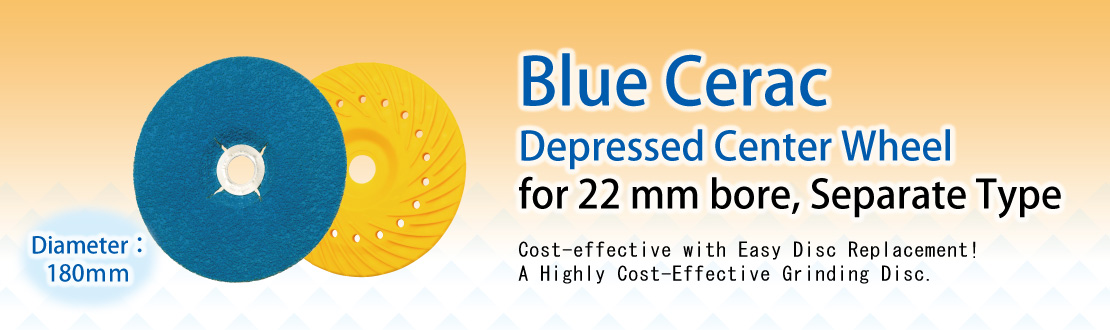

Highly Cost-Effective Grinding Disc
- Cost-effective with Easy Disc Replacement! A Highly Cost-Effective Grinding Disc.

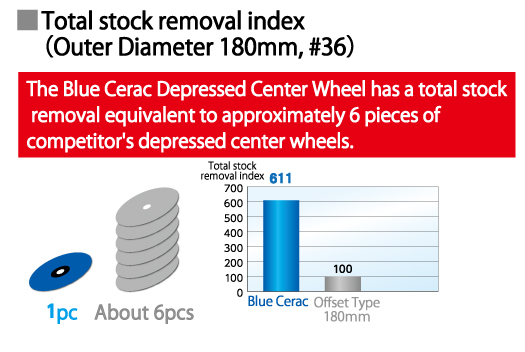

New Phase of Stock Removal and Durability
*Our experimental data.
Grinding force index when SS400 is grinded until 100φ wheels are used up.
(The performance of competitor’s depressed center wheel is defined as 100.)
Compatible with both electric and pneumatic grinders.
- It can be mounted to both electric and pneumatic grinders.
Example of use
Material:Steel,Stainless
Operation:Beveling
Applications
- Surface grinding such as general steel, stainless steel or alumimnum,Deburring, Chamfering,Descaling,Light grinding, Mill scale or paint removal .etc
Specifications
| Diameter (mm) |
Bore (mm) |
Grit | Packing Outer Box （pcs × inner box） |
Max rpm | |
|---|---|---|---|---|---|
| 180 | 22 | 36 | 50pcs (10pcs × 5) |
8,400rpm | |
- The unit of diameter, thickness and bore is the mm.
- Each product lines are available in different sizes, please contact us.
Article
Packaging Image and Accessories

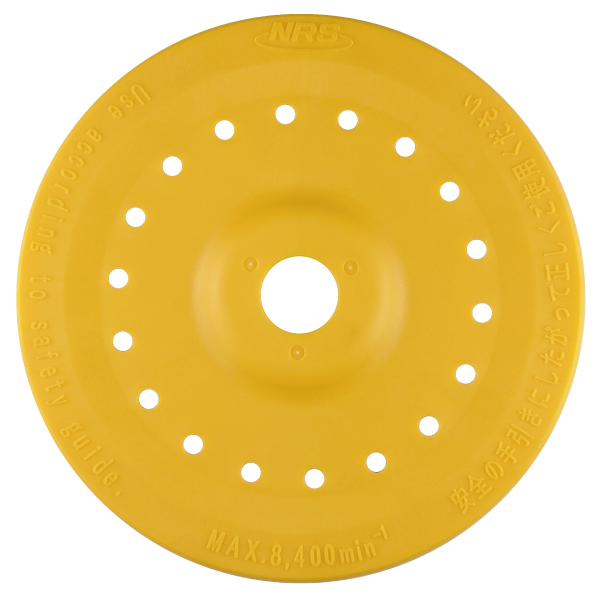

Sold Separately
|
Pad for BCR, Ø180mm, |
 |
Mounting Method
1. Attach the dedicated pad.
2. Install the product.
3. Tighten the movable flange using a spanner.
User Guide

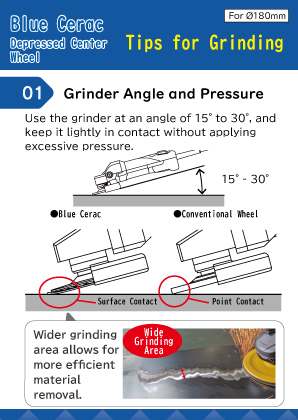

Guideline 1 for Ø180mm

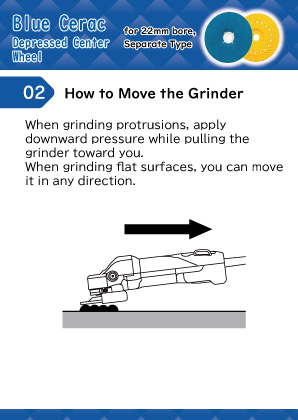

Guideline 2 for Ø180mm
Precautions
- Always use the grinder at an angle of 15° to 30°.
- Do not use the side of the product (outer circumference/edge) on corners or protrusions such as beads.
- For workpieces with uneven surfaces, press down from directly above while pulling the grinder toward you.
- Using the wheel without a pad may lead to it coming off, deforming, or uneven wear.
- Cracks may be visible on the metal washer at the center of the product, but there are no safety concerns.
- Do not use with electric grinders or high-frequency grinders.
